Suction filters
Suction filters

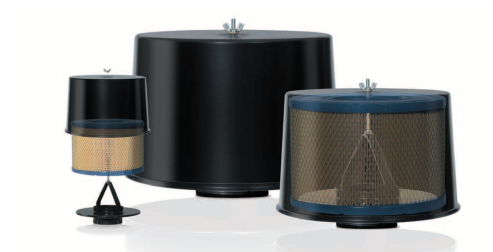

Although this range of housings, commonly known as “bell” filters, is
generally recommended for use on side-channel blowers, it is not uncommon to find
these housings mounted on vacuum pumps and compressors.
The “bell” filters produced by FILTER TECHNICS can be divided
into 3 main families based on the type of connection.
- Threaded from M12 x 1.5 up to 4"
- With metal clamps for diameters from 20 mm to 100 mm.
- Through threaded pipe (connector) from 1/2" to 5", for FPZ models.
The cartridges inside the containers can be made of different filter materials: cellulose, polyester, stainless steel, etc.
The powder coating makes the “bell” filters suitable for outdoor use.
Our filters can also be produced, upon request, in stainless steel, to meet the growing demand in the food and pharmaceutical sectors.
Thanks to their versatility, the complete filters for blowers (classic and FPZ versions) are completely interchangeable with the original products, among which we can mention:
- Becker
- Rietschle
- FPZ
- DVP
- Esam
- Mapro
SOME REFERENCES
| MANN + HUMMEL | BECKER | RIETSCHLE |
|---|---|---|
|
4500977106 |
FK.200 – 74000209000 |
730092 |
|
4502177125 |
FK.202 – 74000219000 |
730093 |
|
4503277105 |
FK.1000 – 74000512000 |
730091 |
|
4503777015 |
FK.1002 – 74000513000 |
730099 |
|
4507477115 |
FK.35 – 74000807000
|
730095 |
|
4513877126 |
FK.35/2 – 74000808000 |
730096 |
|
– |
FK.450 – 74001110000 |
730109 |
|
– |
FK.452 – 74001120000 |
730097 |
|
– |
– |
730098 |

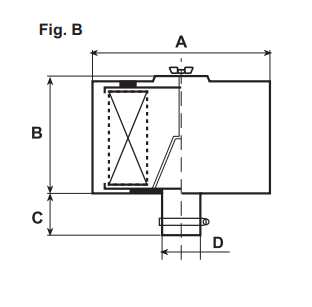

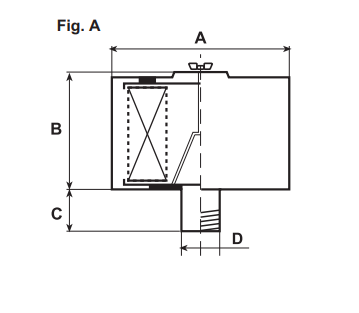

HOUSING DIMENSIONS
| CODICE | FIG. | PORTATA m3 /h | D | A | B | C | CARTUCCE RICAMBIO |
|---|---|---|---|---|---|---|---|
|
CF.BT4005
|
A |
36 |
G. 3/4” |
95 mm
|
83 mm
|
40 mm |
AF.BT1005 |
|
CF.BT4006 |
A |
64 |
G. 1” |
130 mm |
90 mm |
60 mm |
AF.BT1006 |
|
CF.BT4007 |
A |
96 |
G. 1” 1/4 |
130 mm |
90 mm |
60 mm |
AF.BT1007 |
|
CF.BT4008 |
A |
210 |
G. 1” 1/2 |
130 mm |
115 mm |
80 mm |
AF.BT1008
|
|
CF.BT4009 |
A |
270 |
G. 2” |
160 mm |
135 mm |
80 mm |
AF.BT1009 |
|
CF.BT4010
|
A |
480 |
G. 2” 1/2 |
180 mm |
135 mm |
80mm |
AF.BT1010
|
|
CF.BT4011 |
A |
900 |
G. 3” |
280 mm |
165 mm |
80 mm |
AF.BT1011 |
|
CF.BT4012 |
A |
1350 |
G. 4” |
320 mm |
210 mm |
80 mm |
AF.BT1012 |
|
CF.BB4001 |
B |
30 |
20 mm |
95 mm |
83 mm |
25 mm |
AF.BB1001 |
|
CF.BB4002 |
B |
120 |
40 mm |
130 mm |
90 mm |
25 mm |
AF.BB1002 |
|
CF.BB4003 |
B |
210 |
52 mm |
130 mm |
115 mm |
30 mm |
AF.BB1003 |
|
CF.BB4004
|
B
|
270 |
60 mm |
160 mm |
135 mm |
30 mm |
AF.BB1004 |
|
CF.BB4005 |
B |
270 |
70 mm |
160 mm |
135 mm |
30 mm |
AF.BB1005 |
|
CF.BB4006 |
B |
480 |
80 mm |
180 mm |
135 mm |
30 mm |
AF.BB1006 |
|
CF.BB4007 |
B |
900 |
100 mm |
280 mm |
180 mm |
30 mm |
AF.BB1007 |
