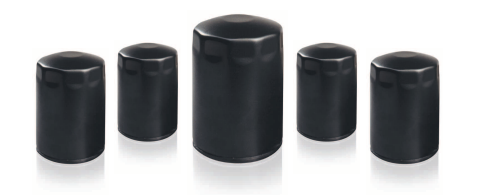

Oil filters
OIL FILTERS FOR VACUUM PUMPS AND COMPRESSORS
FILTER TECHNICS oil filters are compatible and interchangeable with
original ones produced by major compressor and vacuum pump manufacturers.
Our oil filters are tested for use with pressures up to 12 mbar and have a flow capacity of up to 270 l/m. They are also equipped with a bypass and an anti-drain membrane.
SOME REFERENCES FOR VACUUM PUMP APPLICATIONS
| MANN | BUSCH | LEYBOLD |
|---|---|---|
|
W.962/14
|
– |
– |
|
W.940
|
531.001
|
– |
|
W.712/4 |
531.002
|
– |
|
W.962 |
531.005 |
– |
|
W.1170 |
– |
71214598 |
|
WD.920 |
– |
71212718 |
SOME REFERENCES FOR APPLICATIONS ON COMPRESSORS
| MANN REF. | ATLAS COPCO | COMPAIR | HYDROVANE | KAESER | WORTHINGTON |
|---|---|---|---|---|---|
|
W.962/14
|
1612 3980 00
|
98262-220
|
– |
– |
43552 |
|
W.940
|
1619 6227 00
|
– |
– |
6.1985.0
|
– |
|
W.712/4 |
– |
98262-135 |
– |
6.1901.0 |
– |
|
W.962 |
1202 8496 00 |
C11158-1015 |
– |
6.1918.0 |
413719 |
|
W.1170 |
– |
– |
59946 |
– |
– |
|
WD.920 |
– |
– |
56457 |
– |
– |

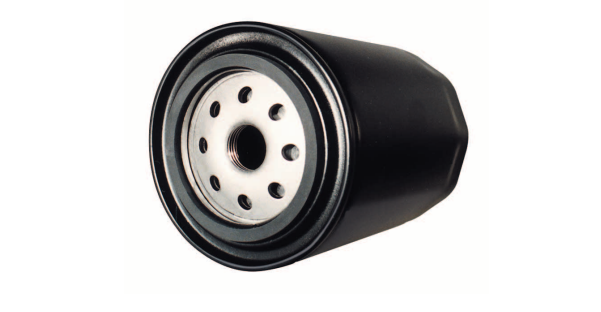

OIL FILTER DIMENSIONS
SOME DIMENSIONS
| CODICE | DIAMETRO ESTERNO (A) | DIAMETRO INTERNO (B) | ALTEZZA TOTALE (H) |
|---|---|---|---|
|
OF.MH5041
|
108 mm.
|
1” 1/8-16 UN
|
260 mm.
|
|
OF.MH5042
|
108 mm.
|
1” 1/8-16 UN
|
260 mm.
|
|
OF.MH5043 |
107 mm. |
1”-12 UNF |
210 mm |
|
OF.MH5044
|
76 mm.
|
3/4”-16 UNF
|
93mm |
|
OF.MH5045 |
76 mm.
|
3/4”-16 UNF
|
123 mm.
|
|
OF.MH5046 |
93 mm. |
3/4”-16 UNF |
142 mm |
|
OF.MH5047 |
93 mm. |
1”-12 UNF |
136 mm |
|
OF.MH5049 |
93 mm |
1”-12 UNF |
170 mm. |
|
OF.MH5050 |
93 mm |
1”-12 UNF |
210 mm. |
|
OF.MH5051 |
93 mm |
1”-12 UNF |
210 mm.
|
|
OF.MH5052 |
136 mm. |
1” 1/2-16 UN |
302 mm. |
|
OF.MH5053 |
136 mm. |
1” 1/2-16 UN |
177 mm |
|
OF.MH5054 |
76 mm. |
3/4”-16 UNF |
138 mm. |
|
OF.MH5055 |
93 mm. |
3/4”-16 UNF |
97 mm. |
|
OF.MH5056 |
93 mm. |
3/4”-16 UNF |
142 mm |
|
OF.MH5057 |
93 mm.
|
1”-12 UNF
|
170 mm |
|
OF.MH5059 |
93 mm |
1”-12 UNF |
212 mm |
Use:
- Valve calibration: 0.5 to 3.5 bar
- Operating temperature:
- Pressure: 12 bar
- Burst pressure: 22 bar
