Silencers

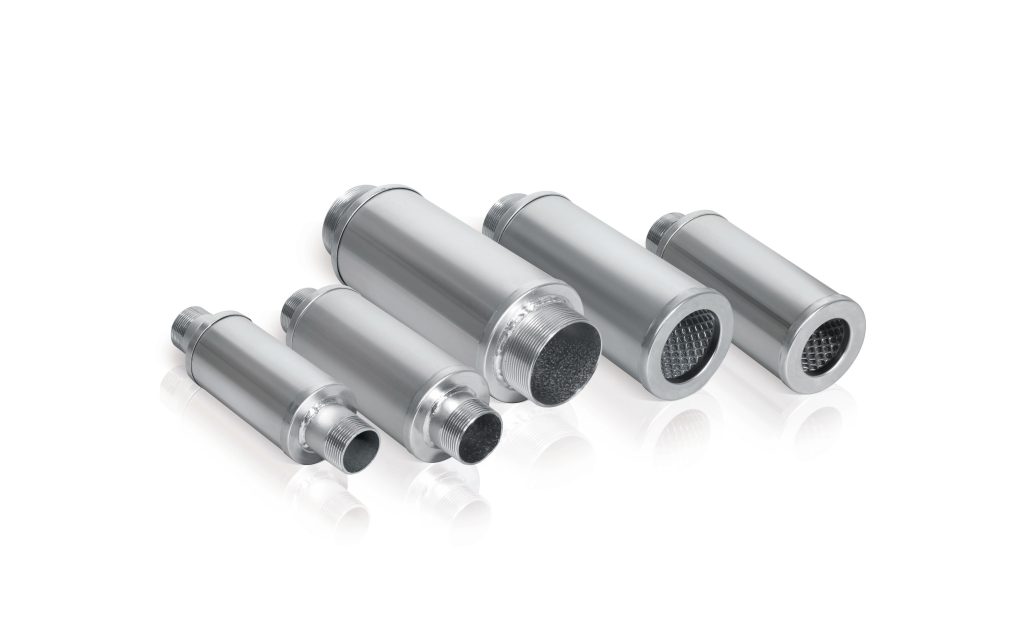

SILENCERS FOR VACUUM PUMPS AND BLOWERS

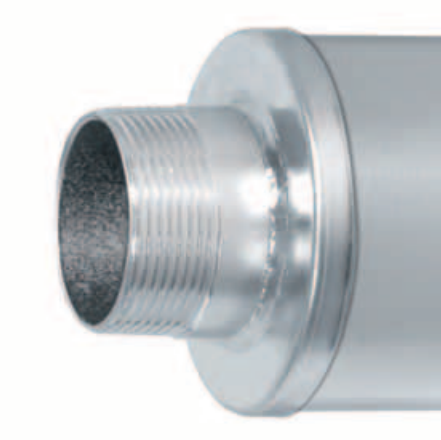

The silencers produced by Filter Technics are built with double
and single threads (with GAS and BSP threads). They are the result of complex
analysis and numerous tests, resulting in a superior product in any
situation requiring excellent soundproofing and
robustness.
Our silencers are characterized by low airflow resistance and effective noise reduction: they are particularly suitable for installation on blowers and vacuum generators, both in suction and compression.
The sturdy steel outer body makes them solid and completely

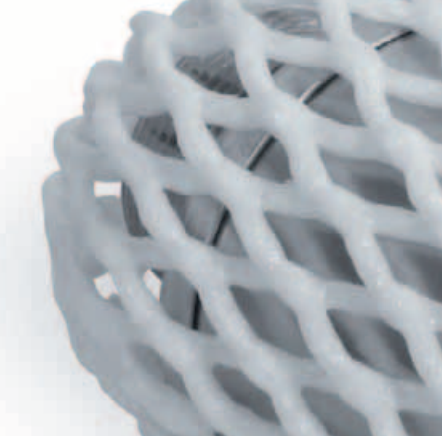

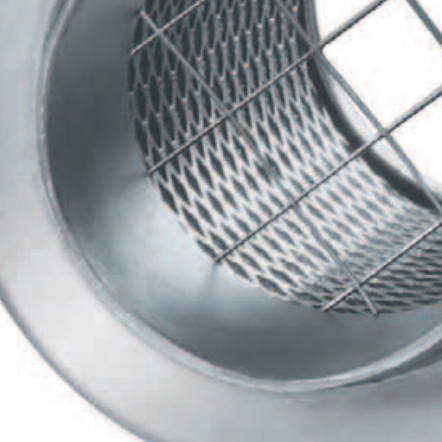

airtight; the interior is filled with open-cell, self-extinguishing
polyurethane foam.
Filter Technics can perform special heat treatments,
install special attachments, or size silencers according to
customer specifications.

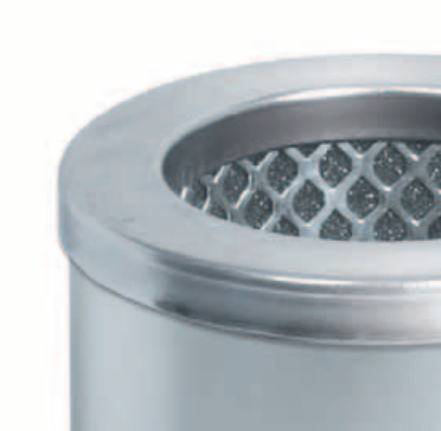

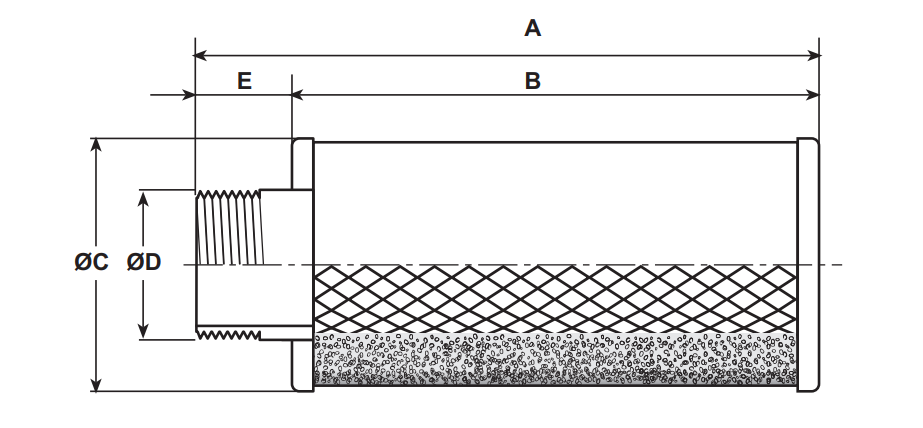

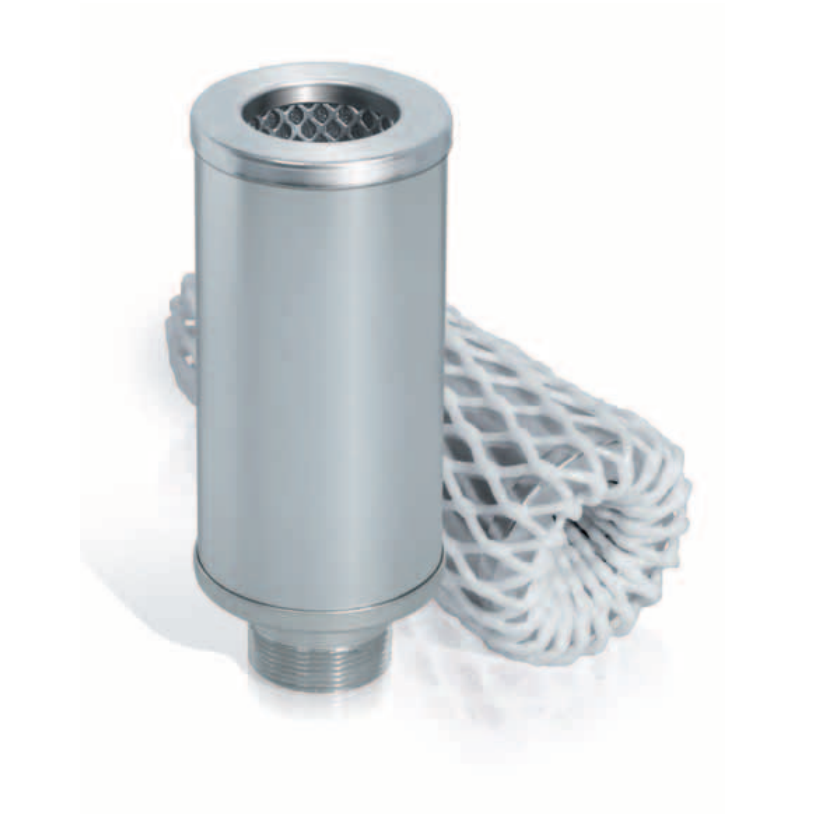

TYPE 1 silencers
Equipped with a GAS threaded connection on one end and open on the other end.
| CODICE | C | D | A | B | E | Kg. |
|---|---|---|---|---|---|---|
|
SI.1005H
|
70 mm
|
G. 1”
|
175 mm
|
140 mm
|
35 mm |
0,620 |
|
SI.1001H |
70 mm
|
G. 1” 1/4 |
175 mm
|
140 mm
|
35mm
|
0,644 |
|
SI.1002H |
80 mm |
G. 1” 1/2 |
205 mm |
170 mm |
35 mm |
0,872 |
|
SI.1003H |
89 mm |
G. 2” |
235 mm |
200 mm |
35 mm |
1,216 |
|
SI.1006H |
100 mm |
G. 2” 1/2 |
235 mm |
200 mm |
35 mm |
1,300 |
|
SI.1004H |
150 mm |
G. 3” |
400 mm |
350 mm |
50 mm |
3,160 |
|
SI.1007H |
150 mm |
G. 4” |
455 mm |
400 mm |
55 mm |
3,695 |

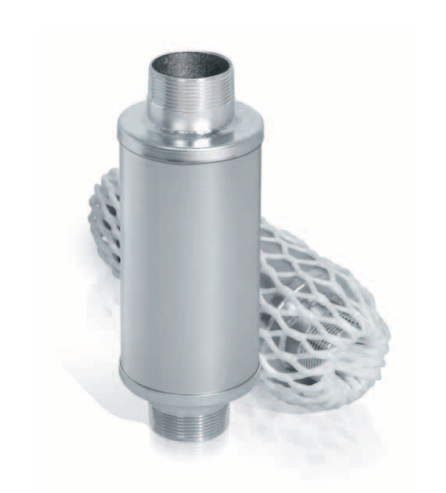

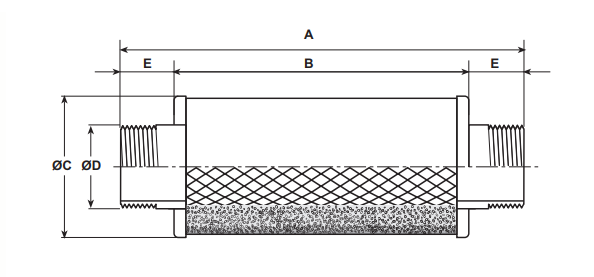

TYPE 2 silencers
This version has GAS threads on both sides.
| CODICE | C | D | A | B | E | Kg. |
|---|---|---|---|---|---|---|
|
SI.2005H |
70 mm
|
G. 1”
|
210 mm |
140 mm
|
35 mm |
0,744 |
|
SI.2001H |
70 mm
|
G. 1” 1/4 |
210 mm
|
140 mm
|
35mm
|
0,788 |
|
SI.2002H |
80 mm |
G. 1” 1/2 |
240 mm |
170 mm |
35 mm |
1,010 |
|
SI.2003H |
89 mm |
G. 2” |
270 mm |
200 mm |
35 mm |
1,436 |
|
SI.2006H |
100 mm |
G. 2” 1/2 |
270 mm |
200 mm |
35 mm |
1,600 |
|
SI.2004H |
150 mm |
G. 3” |
450 mm |
350 mm |
50 mm |
3,600 |
|
SI.1007H |
150 mm |
G. 4” |
515 mm |
400 mm |
55 mm |
4,300 |
