Screw-in suction filters
Screw-in suction filters

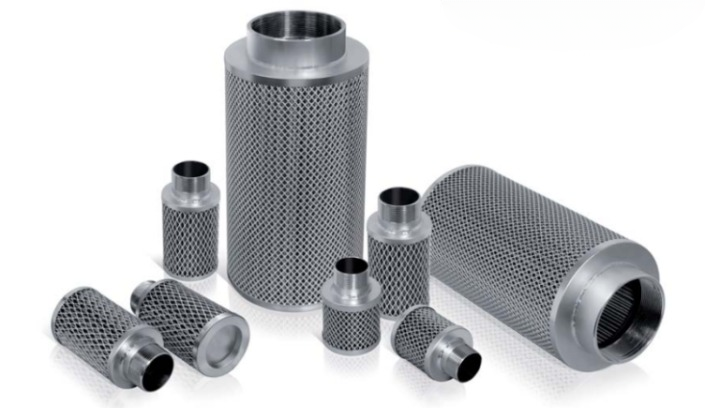

Suction filters are usually used on side channel blowers as coarse protection.
Filter Technics’s
wire mesh suction filters

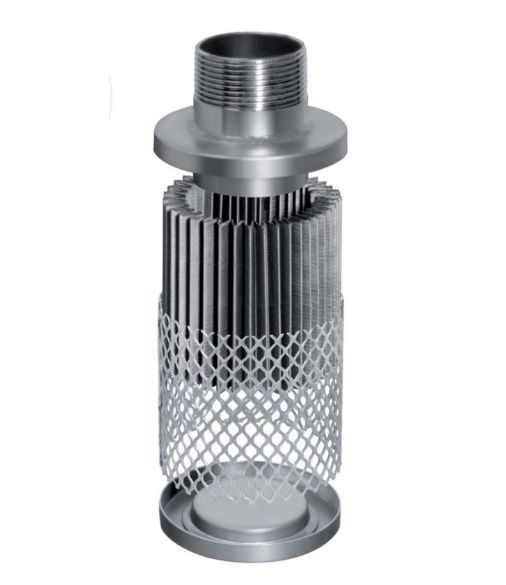

are made of galvanized metal with
the 60-micron AISI 304 filter element.
The filters we produce come with both
male and female connections
and represent the standard
production only. They can be
made with special connections,
NPT, or sizes other than those
listed.

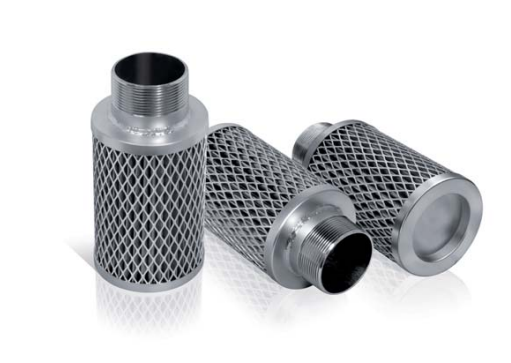

Male thread

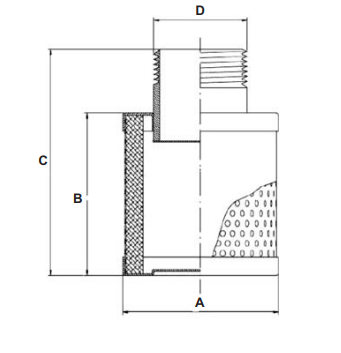

| CODICE | A | B | c | D |
|---|---|---|---|---|
|
TSF.1001 |
70 mm
|
70 mm |
105 mm |
G. 1” |
|
TSF.1002 |
70 mm
|
70mm |
105 mm
|
G. 1” 1/4 |
|
TSF.1003 |
80 mm |
81 mm |
118 mm |
G. 1” 1/2 |
|
TSF.1004 |
90 mm |
135 mm |
178 mm |
G. 2” |
|
TSF.1005 |
140 mm |
200 mm |
242 mm |
G. 2” 1/2 |
|
TSF.1007 |
180 mm |
326 mm |
382 mm |
G. 4” |

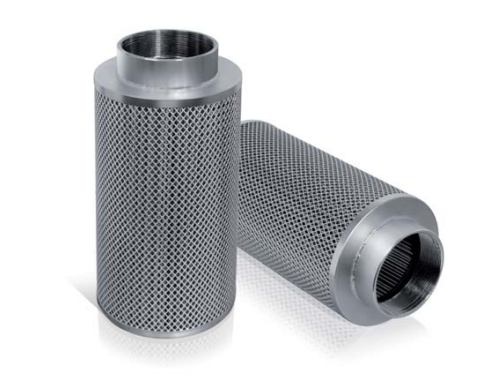

Female thread

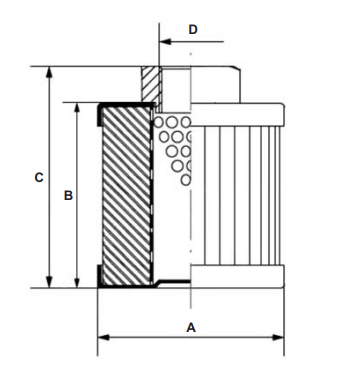

| CODICE | A | B | c | D |
|---|---|---|---|---|
|
TSF.2001 |
70 mm
|
70 mm |
92 mm |
G. 1” |
|
TSF.2002 |
70 mm
|
62mm |
92 mm
|
G. 1” 1/4 |
|
TSF.2003 |
80 mm |
81 mm |
103 mm |
G. 1” 1/2 |
|
TSF.2004 |
90 mm |
134 mm |
160 mm |
G. 2” |
|
TSF.2005 |
140 mm |
200 mm |
230 mm |
G. 2” 1/2 |
|
TSF.2007 |
180 mm |
326 mm |
368 mm |
G. 4” |
